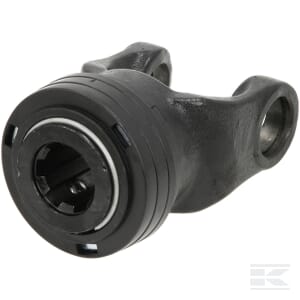

Push-fit yokes gopart
Browse to product table
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
| Product details | Conforms to EN 12965 standard |
|---|
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
Product | Unit | Type | Outside connection diameter | Outside connection diameter | Inside connection diameter | Connection number of splines/grooves | Shaft size code | Locking system | Cross connection diameter | Cross cap diameter | Cross length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Each | Quick disconnect | 34,93 mm | 1-3/8 Inch | 29,76 mm | 6 | PTO 10 | Collar lock | 22 mm | 22 mm | 54 mm | |
| Each | Quick disconnect | 38 mm | 32 mm | 8 | PTO 10 | Collar lock | 22 mm | 22 mm | 54 mm | ||
| Each | Quick disconnect | 34,93 mm | 1-3/8 Inch | 29,76 mm | 21 | PTO 10 | Collar lock | 22 mm | 22 mm | 54 mm | |
| Each | Quick disconnect | 28,59 mm | 1-1/8 Inch | 24,3 mm | 6 | PTO 10 | Collar lock | 22 mm | 22 mm | 54 mm | |
| Each | Quick disconnect | 34,93 mm | 1-3/8 Inch | 29,76 mm | 6 | PTO 20 | Collar lock | 23,8 mm | 23,8 mm | 61,3 mm | |
| Each | Quick disconnect | 38 mm | 32 mm | 8 | PTO 20 | Collar lock | 23,8 mm | 23,8 mm | 61,3 mm | ||
| Each | Quick disconnect | 34,93 mm | 1-3/8 Inch | 29,76 mm | 21 | PTO 20 | Collar lock | 23,8 mm | 23,8 mm | 61,3 mm | |
| Each | Quick disconnect | 34,93 mm | 1-3/8 Inch | 29,76 mm | 6 | PTO 40 | Collar lock | 27 mm | 27 mm | 74,6 mm | |
| Each | Quick disconnect | 38 mm | 32 mm | 8 | PTO 40 | Collar lock | 27 mm | 27 mm | 74,6 mm | ||
| Each | Quick disconnect | 34,93 mm | 1-3/8 Inch | 29,76 mm | 21 | PTO 40 | Collar lock | 27 mm | 27 mm | 74,6 mm | |
| Each | Quick disconnect | 34,93 mm | 1-3/8 Inch | 29,76 mm | 6 | PTO 50 | Collar lock | 30,2 mm | 30,2 mm | 79,6 mm | |
| Each | Quick disconnect | 34,93 mm | 1-3/8 Inch | 29,76 mm | 21 | PTO 50 | Collar lock | 30,2 mm | 30,2 mm | 79,6 mm | |
| Each | Quick disconnect | 34,93 mm | 1-3/8 Inch | 29,76 mm | 6 | PTO 60 | Collar lock | 30,2 mm | 30,2 mm | 91,4 mm | |
| Each | Quick disconnect | 38 mm | 32 mm | 8 | PTO 50 | Collar lock | 30,2 mm | 30,2 mm | 79,6 mm | ||
| Each | Quick disconnect | 38 mm | 32 mm | 8 | PTO 60 | Collar lock | 30,2 mm | 30,2 mm | 91,4 mm | ||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
